iOS Architecture

This page describes the architecture used in our futuredapp/FuturedKit repository.

The architecture is organized into layers, each with a specific responsibility. This ensures improved code organization, testability, and scalability while minimizing component coupling. We follow modern Swift and SwiftUI best practices.

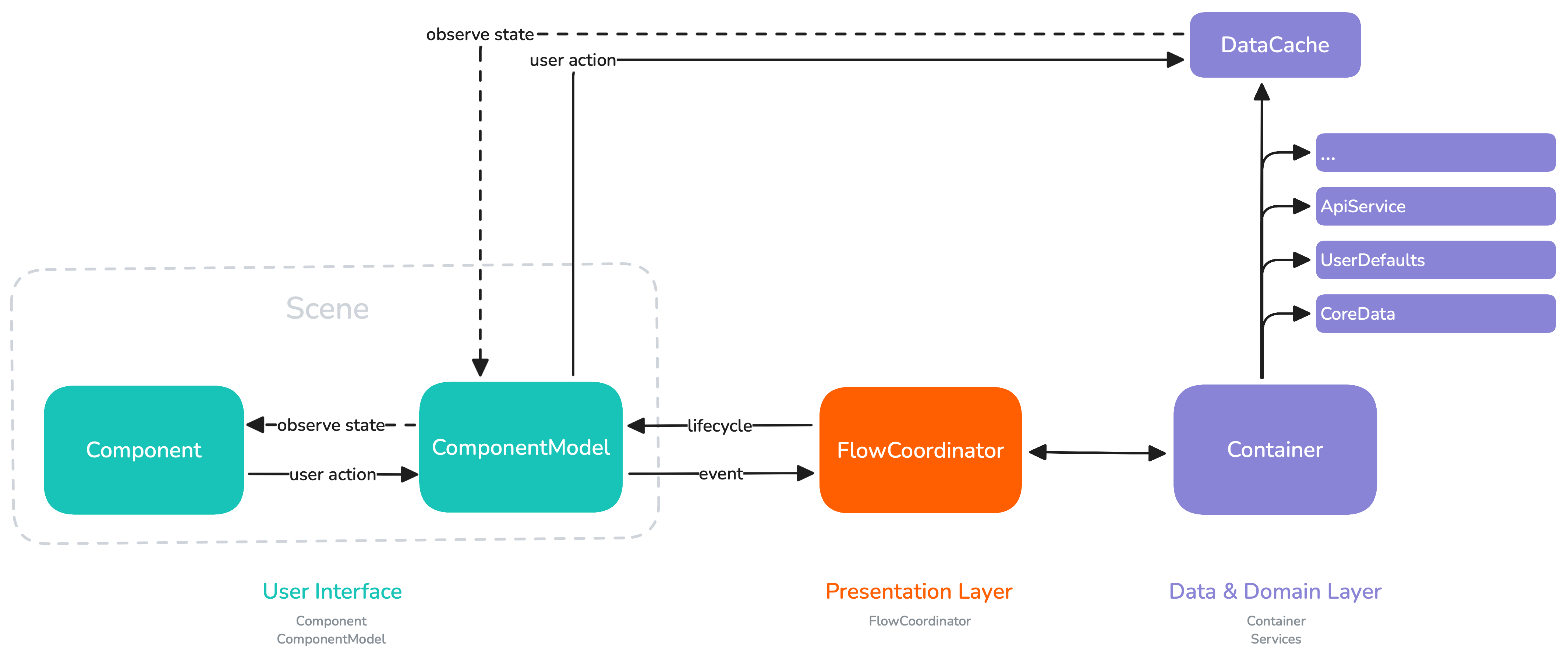

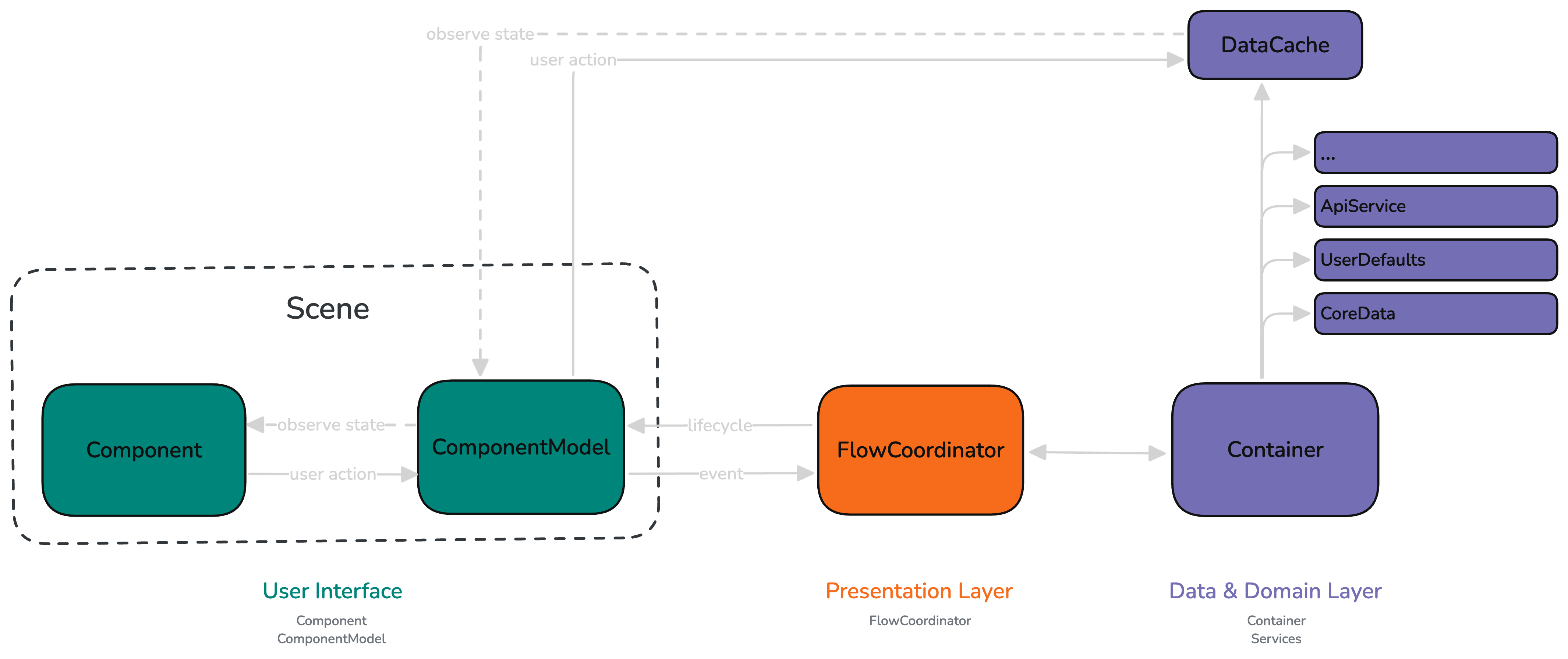

Architecture Light Architecture Dark

Overall Architecture

User Interface

The User Interface is built with SwiftUI using Components and ComponentModels. A Component and its corresponding ComponentModel form a single "scene".

  • each Component<Model> is a struct conforming to View, parameterized with a Model retained via @State
  • components bind to a ComponentModelProtocol to allow mock implementations for seamless scene testing (e.g., #Preview feedback)
  • child components receive their model as a plain property (not wrapped)
  • user interactions are forwarded to the ComponentModel as simple function calls (e.g., model.onButtonTapped())

Presentation Layer

At the presentation layer, we employ an extended MVVM-C style approach with Flow Coordinators and optional Flow Providers.

  • Flow Coordinators conform to Coordinator and manage creation, lifetime, navigation stacks, tabs, and modal presentations
  • TabViewFlow for tabbed flows
  • NavigationStackFlow for push/pop flows
  • coordinators are @Observable classes with explicit @MainActor conformance
  • coordinators control their flow using events emitted by ComponentModels
  • Flow Providers encapsulate reusable sub-flows shared across multiple coordinators

Data & Domain Layer

This layer handles shared state, business logic, and dependencies.

DataCache

The DataCache is an @Observable @MainActor class that serves as the Single Source of Truth for shared application data.

  • reads and writes are synchronous from any @MainActor context (access via dataCache.value)
  • ComponentModels use computed properties to derive data from the DataCache; observation tracking is automatic
  • Services use async/await for asynchronous operations (networking, persistence) and update the DataCache with results
  • can be used globally (one per app) or privately within a coordinator to provide flow-specific data

Services

Business logic, such as networking or data processing, is encapsulated in Services.

  • responsible for performing external operations (e.g., fetching data from an API)
  • used by ComponentModels to trigger actions and update the DataCache if needed

Container

The Container acts as a simple dependency injection hub. It is created at the app's root and passed down to each Coordinator. It is responsible for instantiating and providing shared dependencies such as the DataCache and other Services. Side effects that react to cache changes are co-located in the Container's listeningTask.

Futured Macros

We use futuredapp/futured-macros to reduce boilerplate:

  • @EnumIdentable — auto-conforms enums to Identifiable (used on coordinator Destination enums, marked nonisolated)
  • @ProxyMembers — generates dynamic member lookup forwarding to reduce boilerplate
